Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

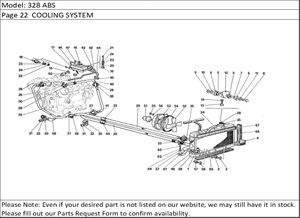

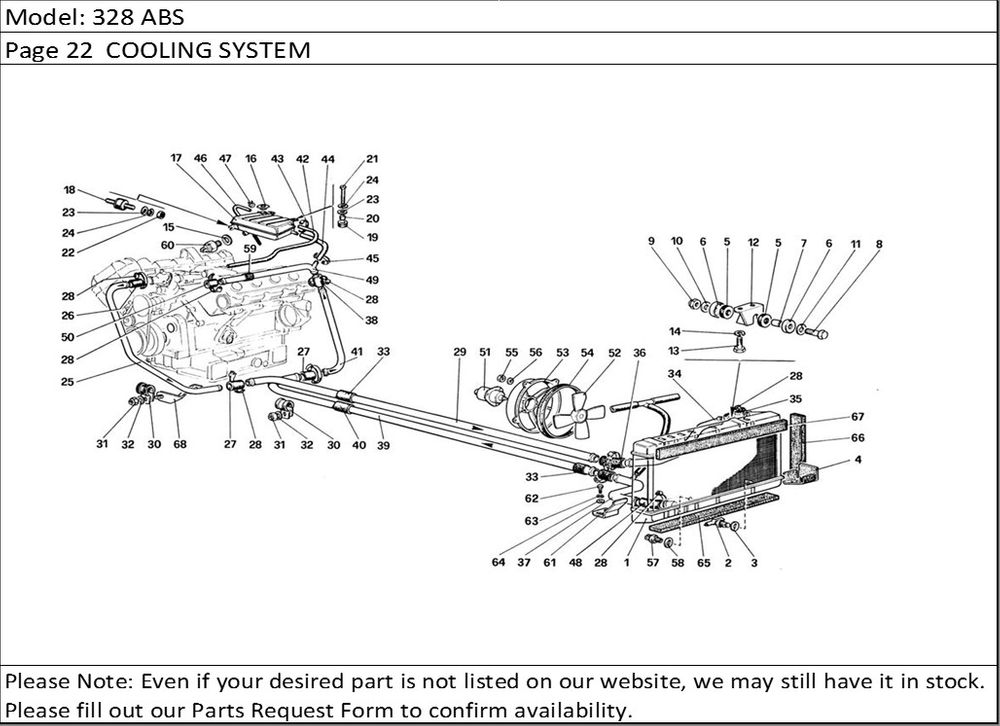

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 126879 | Water radiator | 1 |
| 2 | 101488 | Water drain cock | 1 |
| 4 | 117994 | Rubber shim, vibration damping | 2 |
| 5 | 107978 | Pad | 4 |
| 6 | 107979 | Cup | 4 |
| 7 | 107980 | Spacer | 2 |
| 8 | 16043821 | Screw | 2 |
| 9 | 16104411 | Nut | 2 |
| 10 | 112761 | Washer | 2 |
| 11 | 108292 | Washer | 2 |
| 12 | 117995 | Bracket | 2 |
| 13 | 16043021 | Screw | 4 |
| 14 | 11194071 | Washer | 4 |
| 15 | 10260060 | Gasket - For US | 1 |
| 16 | 101499 | Plug for tank | 1 |
| 17 | 120273 | Expansion tank - Not for US and CH | 1 |
| 17 | 121647 | Expansion tank - For US | 1 |
| 17 | 130641 | Expansion tank - For CH | 1 |
| 18 | 102947 | Vibration - damping support | 1 |
| 19 | 103549 | Vibration - damping bushing | 2 |
| 20 | 103550 | Spacer | 2 |
| 21 | 10902421 | Screw | 2 |
| 22 | 15896211 | Nut | 1 |
| 23 | 12643701 | Washer | 3 |
| 24 | 106850 | Washer | 3 |
| 25 | 108042 | Rear pipe, R.H. - For RHD use no. 108053 | 1 |
| 26 | 122817 | Sleeve - For RHD use no. 102957 | 1 |
| 27 | 105190 | Sleeve | 2 |
| 28 | 12177090 | Clamp | 18 |
| 29 | 108081 | Central pipe delivery to radiator - For RHD use no. 108082 | 1 |
| 30 | 107002 | Clamp | 2 |
| 31 | 12574211 | Nut | 2 |
| 32 | 12643701 | Washer | 2 |
| 33 | 105385 | Vibration damping sleeve | 3 |
| 34 | 127393 | Front pipe delivery to radiator - After exhaustion use no. 137962 - For RHD use no. 137963 | 1 |
| 35 | 122817 | Sleeve - For RHD use no. 102956 | 1 |
| 36 | 102957 | Sleeve | 1 |
| 37 | 118636 | Return pipe, front - For RHD use no. 109504 | 1 |
| 38 | 102957 | Sleeve | 2 |
| 39 | 108082 | Return pipe, central | 1 |
| 40 | 107465 | Vibration damping sleeve | 1 |
| 41 | 118795 | Rear pipe, L.H. - For RHD use no. 120497 | 1 |
| 42 | 122218 | Breather pipe, engine to water reservoir | 1 |
| 43 | 12179490 | Clamp | 2 |
| 44 | 122221 | Feeding pipe, expansion tank to engine | 1 |
| 45 | 12179990 | Clamp | 2 |
| 46 | 126292 | Breather pipe | 1 |
| 47 | 13423379 | Clamp | 1 |
| 48 | 122817 | Sleeve - For RHD use no. 102957 | 1 |
| 49 | 115136 | Pipe between heads | 1 |
| 50 | 122817 | Sleeve | 1 |
| 51 | 117546 | Electric fan motor | 2 |
| 52 | 122953 | Fan | 2 |
| 53 | 60870300 | Conveyor | 2 |
| 54 | 126883 | Gasket | 2 |
| 55 | 12574211 | Nut | 8 |
| 56 | 12643701 | Washer | 8 |
| 57 | 101507 | Thermocontact | 1 |
| 58 | 101508 | Gasket | 1 |
| 59 | 105385 | Sleeve | 1 |
| 60 | 121777 | Thermostat - For US | 1 |
| 61 | 130113 | Bracket | 2 |
| 62 | 10902211 | Screw | 4 |
| 63 | 12646701 | Washer | 4 |
| 64 | 127494 | Washer | 4 |
| 65 | 60773400 | Gasket | 1 |
| 66 | 61980300 | Gasket | 2 |
| 67 | 62369000 | Gasket | 1 |
| 68 | 129642 | Bracket - For US | 1 |
