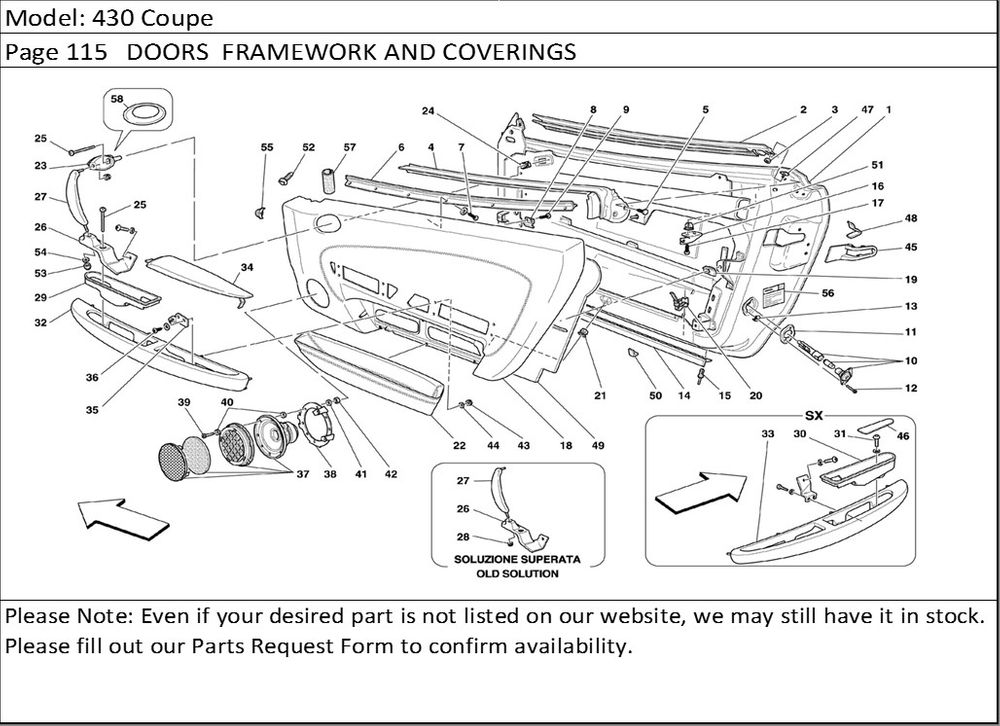

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 67766511 | R.H. DOOR FRAME -Valid till Ass. Nr. 65348 for USA and CDN- -Valid till Ass. Nr. 74919 for not GD- | 1 |
| 1 | 68489211 | L.H. DOOR FRAME -Valid from Ass. Nr. 65349 for USA and CDN- | 1 |
| 1 | 69996011 | L.H. DOOR FRAME -Without pawl- -Valid from Ass. Nr. 74920 for GD- | 1 |
| 1 | 67766211 | L.H. DOOR FRAME -Valid till Ass. Nr. 65348 for USA and CDN- -Valid till Ass. Nr. 74919 for GD- | 1 |
| 1 | 69996811 | R.H. DOOR FRAME -Without pawl- -Valid from Ass. Nr. 74920 for USA- | 1 |
| 1 | 68489311 | R.H. DOOR FRAME -Valid from Ass. Nr. 65349 for USA and CDN- -Valid till Ass. Nr. 74919- | 1 |
| 1 | 69995911 | R.H. DOOR FRAME -Without pawl- -Valid from Ass. Nr. 74920 for not GD and USA- | 1 |
| 2 | 65164400 | R.H. GASKET OUTER GLASS SCRAPER | 1 |
| 2 | 65164500 | L.H. GASKET OUTER GLASS SCRAPER | 1 |
| 3 | 14042077 | NUT | 2 |
| 4 | 65544700 | L.H. GASKET INNER GLASS SCRAPER | 1 |
| 4 | 65544600 | R.H. GASKET INNER GLASS SCRAPER | 1 |
| 5 | 14591687 | FIXING BUTTON | 4 |
| 6 | 65013000 | R.H. STRUCTURAL SHAPE | 1 |
| 6 | 65546200 | L.H. STRUCTURAL SHAPE | 1 |
| 7 | 16082901 | SCREW | 12 |
| 8 | 64595200 | FIXING CLIP | 6 |
| 9 | 16082901 | SCREW | 12 |
| 10 | 184786 | OPENING DOOR LAMP | 2 |
| 11 | 140576 | GASKET | 2 |
| 12 | 15901570 | SCREW | 4 |
| 13 | 61828500 | FIXING CLIP | 4 |
| 14 | 64855600 | GASKET | 2 |
| 15 | 62764000 | RIVET | 14 |
| 16 | 65546400 | R.H. BRACKET | 1 |
| 16 | 65547800 | L.H. BRACKET | 1 |
| 17 | 15644075 | SCREW | 4 |
| 18 | 684139 | L.H. COVERED DOOR PANEL -Valid for GD- | 1 |
| 18 | 681694 | L.H. COVERED DOOR PANEL -Not for GD- | 1 |
| 18 | 684137 | R.H. COVERED DOOR PANEL -Valid for GD- | 1 |
| 18 | 681693 | R.H. COVERED DOOR PANEL -Not for GD- | 1 |
| 19 | 14190290 | NUT | 12 |
| 20 | 177553 | CLAMP | 8 |
| 21 | 14201980 | BLOCK | 2 |
| 22 | 67839212 | COVERED L.H. UTILITY POCKET | 1 |
| 22 | 67805512 | COVERED R.H. UTILITY POCKET | 1 |
| 23 | 65157600 | R.H. HANDLE MOULDING UPPER CONNECTION -Not for GD- | 1 |
| 23 | 65159000 | R.H. HANDLE MOULDING UPPER CONNECTION -Valid for GD- | 1 |
| 24 | 14190190 | NUT | 4 |
| 25 | 68854100 | SCREW | 2 |
| 26 | 65158900 | L.H. HANDLE MOULDING LOWER CONNECTION -Valid for GD- | 1 |
| 26 | 65157500 | R.H. HANDLE MOULDING LOWER CONNECTION -Not for GD- | 1 |
| 27 | 651594 | R.H. HANDLE MOULDING KNOB -Not for GD- | 1 |
| 27 | 651595 | L.H. HANDLE MOULDING KNOB -Valid for GD- | 1 |
| 28 | 14059211 | NUT | 2 |
| 29 | 65011500 | R.H. HANDLE PLATE | 1 |
| 30 | 67958300 | L.H. PLATE FOR HANDLE | 1 |
| 31 | 13276077 | SCREW | 1 |
| 32 | 678044 | R.H. DOOR ARM-REST -Not for GD- | 1 |
| 32 | 684138 | R.H. DOOR ARM-REST -Valid for GD- | 1 |
| 33 | 678381 | L.H. DOOR ARM-REST -Not for GD- | 1 |
| 33 | 684141 | L.H. DOOR ARM-REST -Valid for GD- | 1 |
| 34 | 678398 | L.H. DOOR ARM-REST INSERT | 1 |
| 34 | 678061 | R.H. DOOR ARM-REST INSERT | 1 |
| 35 | 65075100 | R.H. BRACKET | 1 |
| 35 | 65702800 | L.H. BRACKET | 1 |
| 36 | 16082901 | SCREW | 4 |
| 37 | 80199700 | LOUD SPEAKER -Valid for powered HI FI Bose system- | 2 |
| 37 | 80199700 | LOUD SPEAKER -Valid for powered HI FI Bose system- -Not as spare part- -Replaced by 80199700- | 2 |
| 37 | 188607 | LOUD SPEAKER WOOFER -Valid for cars with radio amplifier- | 2 |
| 37 | 65865100 | LOUD SPEAKER WOOFER -Not for cars with radio amplifier- | 2 |
| 38 | 67941700 | LOUD SPEAKER R.H. SUPPORT BRACKET | 1 |
| 38 | 80293300 | LOUD SPEAKER R.H. SUPPORT BRACKET -Valid for powered HI FI Bose system- | 1 |
| 38 | 67960500 | LOUD SPEAKER L.H. SUPPORT BRACKET | 1 |
| 38 | 80322400 | LOUD SPEAKER L.H. SUPPORT BRACKET -Valid for powered HI FI Bose system- | 1 |
| 39 | 10444887 | SCREW | 7 |
| 40 | 14497701 | WASHER | 14 |
| 41 | 12601074 | WASHER | 7 |
| 42 | 10721911 | NUT | 7 |
| 43 | 15896470 | NUT | 16 |
| 44 | 12638104 | WASHER | 16 |
| 45 | 68640600 | R.H. PLATE | 1 |
| 45 | 68640700 | L.H. PLATE | 1 |
| 46 | 679602 | COVER | 1 |
| 47 | 67194200 | SMALL PLATE | 2 |
| 48 | 65705300 | CLIP | 4 |
| 49 | 68643600 | R.H. WATER PROTECTION CLOTH | 1 |
| 49 | 68643700 | L.H. WATER PROTECTION CLOTH | 1 |
| 50 | 67111400 | RUBBER | 4 |
| 51 | 14201980 | BLOCK | 4 |
| 52 | 66805100 | PIN -Not as spare part now- -Replaced by 68297800- | 4 |
| 52 | 68297800 | PIN | 4 |
| 53 | 14137721 | NUT | 2 |
| 54 | 12648221 | WASHER | 2 |
| 55 | 69724300 | PLUG | 4 |
| 56 | 199130 | MERCURY PLATE -Valid for USA and CDN- | 1 |
| 57 | 179309 | ADHESIVE SPONGE -100 x 50mm- | 2 |
| 57 | 198916 | ADHESIVE SPONGE -150 x 50mm- | 2 |
| 58 | 67958000 | PLATE-Not for GD- | 1 |
| 58 | 68379400 | PLATE -Valid for GD- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
