Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

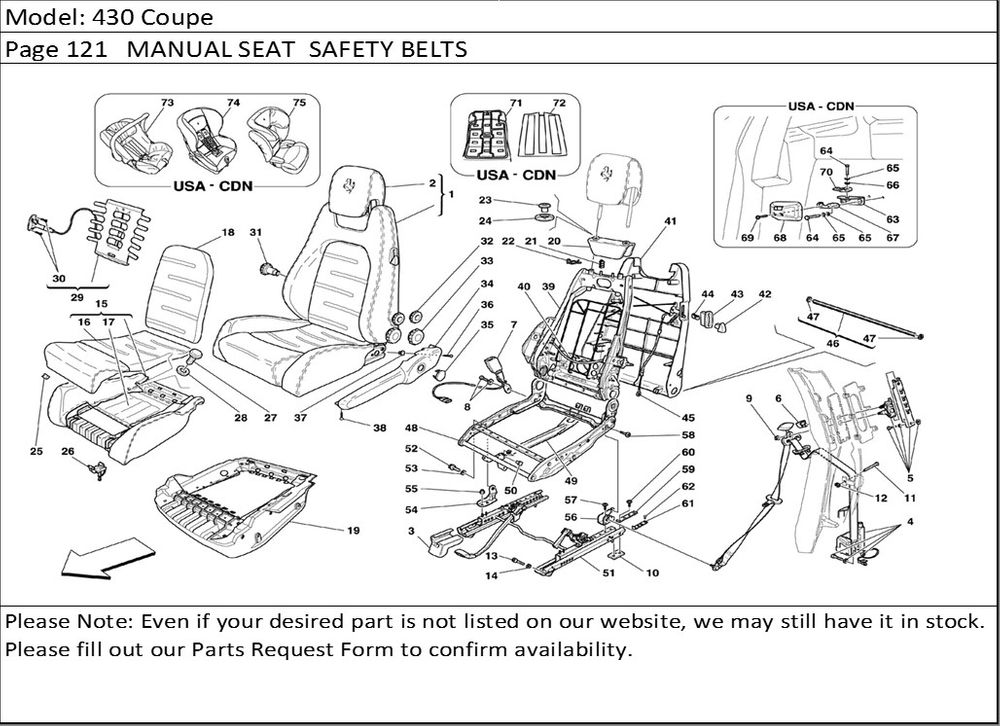

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 690838 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid for GD- | 1 |
| 1 | 691511 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid for USA and CDN- | 1 |
| 1 | 690847 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Not for USA,CDN and GD- | 1 |
| 1 | 689915 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -With lining + Daytona- -Valid for GD- | 1 |
| 1 | 690406 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -With lining + Daytona- -Not for GD- | 1 |
| 1 | 690836 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid for GD- | 1 |
| 1 | 699753 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid for USA MY 06 07- | 1 |
| 1 | 691509 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid for USA and CDN- | 1 |
| 1 | 690845 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining- -Not for USA,CDN and GD- | 1 |
| 1 | 690404 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -With lining- -Not for GD- | 1 |
| 1 | 690837 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid for GD- | 1 |
| 1 | 699755 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid for USA MY 06 07- | 1 |
| 1 | 801867 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 1 | 801872 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 1 | 689913 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -With lining- -Valid for GD- | 1 |
| 1 | 691510 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid for USA and CDN- | 1 |
| 1 | 690826 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid for GD- | 1 |
| 1 | 689903 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -With lining + Daytona- -Valid for GD- | 1 |
| 1 | 681324 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -With lining + Daytona- -Not for GD- | 1 |
| 1 | 695782 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid for USA MY 06 07- | 1 |
| 1 | 691951 | SEAT BACK LINING -Optional- -With lining- | 2 |
| 1 | 691949 | SEAT BACK LINING | 2 |
| 1 | 801874 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 1 | 801873 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid from Ass. | 1 |
| 1 | 699754 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid for USA MY 06 07- | 1 |
| 1 | 690846 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Not for USA,CDN and GD- | 1 |
| 1 | 689914 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -Daytona- -Valid for GD- | 1 |
| 1 | 681320 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -With lining- -Not for GD- | 1 |
| 1 | 690830 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid for GD- | 1 |
| 1 | 695783 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Valid for USA MY 06 07- | 1 |
| 1 | 690851 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -Daytona- -Not for USA MY 06 07 and GD- | 1 |
| 1 | 689907 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -Daytona- -Not for GD- | 1 |
| 1 | 681321 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -Daytona- -Not for GD- | 1 |
| 1 | 690828 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Standard- -Valid for GD- | 1 |
| 1 | 695780 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Standard- -Valid for USA MY 06 07- | 1 |
| 1 | 690848 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Standard- -Not for USA MY 06 07 and GD- | 1 |
| 1 | 689905 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Standard- -Valid for GD- | 1 |
| 1 | 677813 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Standard- -Not for GD- | 1 |
| 1 | 689906 | COMPLETE PILOT SEAT MANUAL -Without cloth hook- -Optional- -With lining- -Valid for GD- | 1 |
| 1 | 690850 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining- -Not for USA MY 06 07 and GD- | 1 |
| 1 | 690405 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Optional- -Daytona- -Not for GD- | 1 |
| 1 | 690835 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Standard- -Valid for GD- | 1 |
| 1 | 699748 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Standard- -Valid for USA MY 06 07- | 1 |
| 1 | 691504 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Standard- -Valid for USA and CDN- | 1 |
| 1 | 690839 | COMPLETE PASSENGER SEAT MANUAL -With cloth hook- -Standard- -Not for USA, CDN and GD- | 1 |
| 1 | 689912 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Standard- -Valid for GD- | 1 |
| 1 | 689998 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Standard- -Not for GD- | 1 |
| 1 | 677812 | COMPLETE PASSENGER SEAT MANUAL -Without cloth hook- -Standard- -Not as spare part- -Replaced by 689998..- -Not for GD- | 1 |
| 1 | 695786 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Valid for USA MY 06 07- | 1 |
| 1 | 690854 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining + Daytona- -Not for USA MY 06 07 and GD- | 1 |
| 1 | 690829 | COMPLETE PILOT SEAT MANUAL -With cloth hook- -Optional- -With lining- -Valid for GD- | 1 |
| 2 | 694260 | COMPLETE HEAD-REST -With cloth hook- -Optional- -With lining- | 2 |
| 2 | 691948 | COMPLETE HEAD-REST -Without cloth hook- -Optional- -With lining- | 2 |
| 2 | 694259 | COMPLETE HEAD-REST -With cloth hook- -Standard- | 2 |
| 2 | 691947 | COMPLETE HEAD-REST -Without cloth hook- -Standard- | 2 |
| 3 | 65922100 | L.H. GUIDE SHIELD | 2 |
| 3 | 65922000 | R.H. GUIDE SHIELD | 2 |
| 4 | 68867300 | COMPLETE R.H. SAFETY BELTS -Valid for USA and CDN- | 1 |
| 4 | 68146700 | COMPLETE R.H. SAFETY BELTS -Not for USA and CDN- | 1 |
| 4 | 68867400 | COMPLETE L.H. SAFETY BELTS -Valid for USA and CDN- | 1 |
| 4 | 68146800 | COMPLETE L.H. SAFETY BELTS -Not for USA and CDN- | 1 |
| 5 | 65408600 | SAFETY BELTS HEIGHT REGULATOR -Not as spare part now- -Replaced by 66873400- | 2 |
| 5 | 66873400 | SAFETY BELTS HEIGHT REGULATOR | 2 |
| 6 | 65408800 | KNOB | 2 |
| 7 | 65924600 | PILOT SIDE BUCKLE BRANCH | 1 |
| 7 | 65629100 | PASSENGER SIDE BUCKLE BRANCH | 1 |
| 8 | 65911400 | SCREW | 2 |
| 9 | 65408700 | NUT | 2 |
| 10 | 166168 | REAR SMALL PLATE | 4 |
| 11 | 64858500 | PIN FOR BRACKET | 2 |
| 12 | 11087776 | FLEXIBLE RING | 2 |
| 13 | 65917500 | SCREW | 4 |
| 14 | 65917600 | WASHER | 4 |
| 15 | 809377 | R.H. COMPLETE CUSHION -Optional- -With lining + Daytona- -Valid from Ass. Nr. 69895 for USA and CDN - -With CPOD- | 1 |
| 15 | 695726 | R.H. LATERAL CUSHION LINING -Passenger side- -Standard- | 1 |
| 15 | 695728 | R.H. LATERAL CUSHION LINING -Passenger side- -Optional- -With lining- | 1 |
| 15 | 691961 | L.H. LATERAL CUSHION LINING -Passenger side- -Standard- | 1 |
| 15 | 691963 | L.H. LATERAL CUSHION LINING -Passenger side- -Optional- -With lining- | 1 |
| 15 | 691965 | R.H. LATERAL CUSHION LINING -Pilot side- -Standard- | 1 |
| 15 | 691967 | R.H. LATERAL CUSHION LINING -Pilot side- -Optional- -With lining- | 1 |
| 15 | 695720 | L.H. LATERAL CUSHION LINING -Pilot side- -Standard- | 1 |
| 15 | 695723 | L.H. LATERAL CUSHION LINING -Pilot side- -Optional- -With lining- | 1 |
| 15 | 809376 | R.H. COMPLETE CUSHION -Optional- -With lining- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 15 | 809373 | R.H. COMPLETE CUSHION -Optional- -Daytona- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 15 | 691953 | L.H. COMPLETE CUSHION -Standard- | 1 |
| 15 | 694686 | R.H. COMPLETE CUSHION -Standard- | 1 |
| 15 | 691954 | L.H. COMPLETE CUSHION -Optional- -Daytona- | 1 |
| 15 | 695715 | R.H. COMPLETE CUSHION -Optional- -Daytona- | 1 |
| 15 | 691955 | L.H. COMPLETE CUSHION -Optional- -With lining- | 1 |
| 15 | 695716 | R.H. COMPLETE CUSHION -Optional- -With lining- | 1 |
| 15 | 691956 | L.H. COMPLETE CUSHION -Optional- -With lining + Daytona- | 1 |
| 15 | 695717 | R.H. COMPLETE CUSHION -Optional- -With lining + Daytona- | 1 |
| 15 | 809371 | R.H. COMPLETE CUSHION -Standard- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 16 | 809370 | CENTRAL CUSHION -Optional- -Daytona- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 2 |
| 16 | 809369 | CENTRAL CUSHION -Standard- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 2 |
| 16 | 691978 | CENTRAL CUSHION -Optional- -Daytona- | 2 |
| 16 | 691977 | CENTRAL CUSHION -Standard- | 2 |
| 17 | 69198100 | CUSHION BOTTOM MEMBRANE | 2 |
| 18 | 691980 | CENTRAL SEAT BACK -Daytona- -Optional- | 2 |
| 18 | 695718 | CENTRAL SEAT BACK -With lumbar adjusting- -Standard- | 1 |
| 18 | 691979 | CENTRAL SEAT BACK -With lumbar adjusting- -Standard- | 1 |
| 19 | 69198300 | CUSHION END PLATE WITH BRACKET -For USA only for R.H. Seat- | 2 |
| 19 | 69661500 | L.H. CUSHION END PLATE WITH BRACKET -Valid for USA- | 1 |
| 20 | 691982 | COMPLETE SADDLE | 2 |
| 21 | 66324700 | CLIP | 4 |
| 22 | 66324600 | R.H. CLIP | 2 |
| 22 | 66370200 | L.H. CLIP | 2 |
| 23 | 64025400 | BUSHING | 4 |
| 24 | 64025500 | WASHER | 4 |
| 25 | 67283300 | CLIP | 4 |
| 26 | 66324000 | CUSHION FIXING CLIP | 4 |
| 27 | 67282500 | CLIP | 16 |
| 28 | 67282600 | WASHER | 16 |
| 29 | 66370300 | L.H. MANUAL LOMBAR SYSTEM -Not for Standard and Cadenino Seats RHD- | 1 |
| 29 | 66329800 | R.H. MANUAL LOMBAR SYSTEM -Not for Standard and Cadenino Seats LHD- | 1 |
| 30 | 66329900 | SCREW -For Daytona seats Q.ty 4- | 2 |
| 31 | 66325600 | SIDE ADJUSTING KNOB | 2 |
| 32 | 66325500 | LUMBAR ADJUSTING KNOB -For Daytona seats Q.ty 2- | 1 |
| 33 | 66325300 | SEAT BACK ADJUSTING KNOB | 2 |
| 34 | 663251 | L.H. OUTER COVER SEAT | 1 |
| 34 | 663250 | R.H. OUTER COVER SEAT | 1 |
| 35 | 663249 | COMPLETE PLUG | 2 |
| 36 | 66370500 | SCREW | 2 |
| 37 | 66325200 | NUT SCREW | 2 |
| 38 | 66370600 | SCREW | 2 |
| 39 | 69198400 | SEAT BACK STRUCTURE | 2 |
| 40 | 66326100 | BOWDEN CABLE SHEATH | 2 |
| 40 | 66326000 | SEAT BACK SIDE BOWDEN CABLE | 2 |
| 41 | 66324100 | SEAT BACK COVERING | 2 |
| 42 | 66324500 | SEAT RELEASE LEVER | 4 |
| 43 | 66324400 | PLATE | 4 |
| 44 | 66324300 | CLIP | 4 |
| 45 | 66324200 | SEAT RELEASE CABLE | 4 |
| 46 | 66326300 | COMPLETE UNION BAR | 2 |
| 47 | 66328700 | FIXING RING | 4 |
| 48 | 69198800 | R.H. CUSHION STRUCTURE | 1 |
| 48 | 69198900 | L.H. CUSHION STRUCTURE | 1 |
| 49 | 69198600 | SAFETY TIE ROD | 1 |
| 50 | 69198700 | PIN | 1 |
| 51 | 66323900 | COMPLETE L.H. SEAT GUIDE | 1 |
| 51 | 66323800 | COMPLETE R.H. SEAT GUIDE | 1 |
| 52 | 66327500 | COMPLETE SCREW | 8 |
| 53 | 66327600 | FRONT FIXING BUSHING | 4 |
| 53 | 66327700 | REAR FIXING BUSHING | 4 |
| 54 | 66323100 | R.H. FRONT ADAPTER | 1 |
| 54 | 66323200 | L.H. FRONT ADAPTER | 1 |
| 55 | 66372900 | NUT | 8 |
| 56 | 66323400 | L.H. BRACKET | 1 |
| 56 | 66323300 | R.H. BRACKET | 1 |
| 57 | 66327100 | SCREW | 8 |
| 58 | 66327900 | SCREW | 8 |
| 59 | 66323500 | UPPER PLATE | 4 |
| 60 | 66327100 | SCREW | 4 |
| 61 | 66323600 | LOWER PLATE | 4 |
| 62 | 66323700 | CLIP | 4 |
| 63 | 66150500 | BRACKET -Valid for USA and CDN- | 1 |
| 64 | 16043934 | SCREW -Valid for USA and CDN- | 3 |
| 65 | 14496524 | WASHER -Valid for USA and CDN- | 3 |
| 66 | 12601374 | WASHER -Valid for USA and CDN- | 3 |
| 67 | 66157300 | COVER FIXING BRACKET -Valid for USA and CDN- | 1 |
| 68 | 66153800 | COVER -Valid for USA and CDN- | 1 |
| 69 | 168133 | SCREW -Valid for USA and CDN- | 2 |
| 70 | 66154400 | BRACKET FOR BELT COUPLER -Valid for USA and CDN- | 1 |
| 71 | 80936700 | CPOD SENSOR -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 72 | 80936800 | CPOD SENSOR PROTECTION -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 73 | 80358300 | CHILDREN SEAT -Baby safe- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 74 | 80358400 | CHILDREN SEAT -Duo plus- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 75 | 80358500 | CHILDREN SEAT -Kid plus- -Valid from Ass. Nr. 69895 for USA and CDN- -With CPOD- | 1 |
| 76 | 694325 | R.H. LARGE RACING SEAT LEATHER/TISSUE -Bordeaux Alcantara- -Valid for USA and CDN- -Without cloth hook- | 1 |
| 76 | 694326 | R.H. LARGE RACING SEAT LEATHER/TISSUE -Blue Alcantara- -Valid for USA and CDN- -Without cloth hook- | 1 |
| 76 | 694327 | R.H. LARGE RACING SEAT LEATHER/TISSUE -Yellow Alcantara- -Valid for USA and CDN- -Withaut cloth hoot- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
