Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

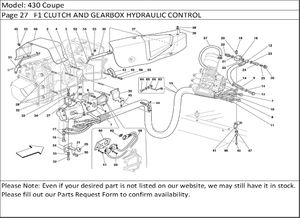

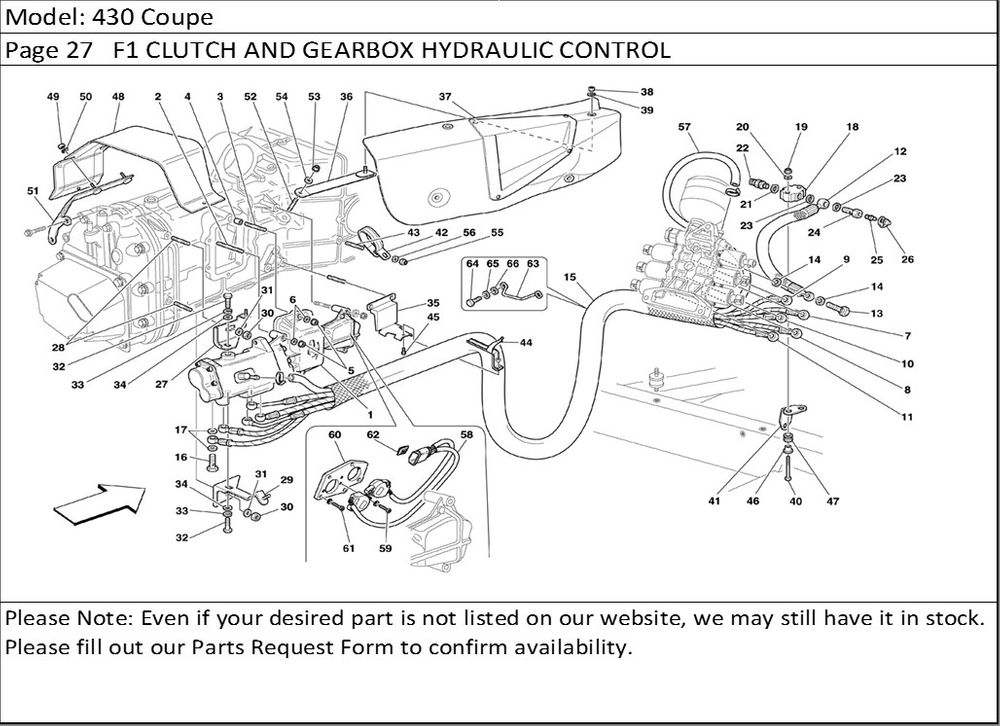

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 0 | 232406 | F1 GEARBOX SYSTEM COMPONENTS KIT -Valid for F1- -Valid till car Ass. Nr. 61588- | 1 |
| 0 | 232406 | F1 GEARBOX SYSTEM COMPONENTS KIT -Valid for F1- -Valid from car Ass. Nr. 61589- -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232406- | 1 |
| 0 | 232406 | F1 GEARBOX SYSTEM COMPONENTS KIT -Valid for F1- -Valid from car Ass. Nr. 61589- -Valid from Ass. Nr. 69347- -Replaces 218562- | 1 |
| 1 | 220244 | COMPLETE HYDRAULIC ACTUATOR | 1 |
| 2 | 11501024 | STUD | 4 |
| 3 | 11500724 | STUD | 2 |
| 4 | 103038 | CENTERING DOWEL | 2 |
| 5 | 16100814 | NUT | 2 |
| 6 | 127496 | SHER | 2 |
| 7 | 248096 | PIPE (EV1) -Valid from Ass. Nr. 69347- -Replaces 179340- | 1 |
| 7 | 179340 | PIPE (EV1) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232407- | 1 |
| 8 | 179342 | PIPE (EV2) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232408- | 1 |
| 8 | 248097 | PIPE (EV2) -Valid from Ass. Nr. 69347- -Replaces 179342- | 1 |
| 9 | 179343 | PIPE (EV3) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232409- | 1 |
| 9 | 232409 | PIPE (EV3) -Valid from Ass. Nr. 69347- -Replaces 179343- | 1 |
| 10 | 179344 | PIPE (EV4) -Valid till Ass. Nr. 69346- -Not as spare part- -Replaced by 232410- | 1 |
| 10 | 232410 | PIPE (EV4) -Valid from Ass. Nr. 69347- -Replaces 179344- | 1 |
| 11 | 179345 | PIPE (EV5) -Valid till Ass. Nr. 69346--Not as spare part--Replaced by 232411- | 1 |
| 11 | 232411 | PIPE (EV5) -Valid from Ass. Nr. 69347- -Replaces 179345- | 1 |
| 12 | 208395 | PIPE FROM PUMP TO BLOCK | 1 |
| 13 | 171454 | UNION -EV1, EV2, clutch- | 3 |
| 13 | 204545 | UNION -EV3, EV4, EV5- | 3 |
| 14 | 10261060 | GASKET | 12 |
| 15 | 179346 | PROTECTION SHEATH | 1 |
| 16 | 171454 | UNION -EV1,EV2- | 2 |
| 16 | 204543 | UNION -EV3, EV4, EV5- | 3 |
| 17 | 10261060 | GASKET | 10 |
| 18 | 175667 | BLOCK | 1 |
| 19 | 15896214 | NUT | 2 |
| 20 | 12601279 | SHER | 2 |
| 21 | 171755 | SHER | 1 |
| 22 | 210468 | QUICK MALE COUPLING | 1 |
| 23 | 10261060 | GASKET | 2 |
| 24 | 171630 | UNION | 1 |
| 25 | 152954 | BLEEDER SCREW | 1 |
| 26 | 152955 | PROTECTION BOOT | 1 |
| 27 | 174257 | UPPER ACTUATOR SUPPORT BRACKET | 1 |
| 28 | 13516424 | STUD | 2 |
| 29 | 248092 | ER ACTUATOR SUPPORT BRACKET | 1 |
| 30 | 16100814 | NUT | 2 |
| 31 | 127496 | SHER | 2 |
| 32 | 16043124 | SCREW | 2 |
| 33 | 127496 | SHER | 2 |
| 34 | 10519624 | SHER | 2 |
| 35 | 208101 | PIPES SUPPORTING BRACKET | 1 |
| 36 | 242669 | SHIELD SUPPORTING BRACKET | 1 |
| 37 | 220681 | SHIELD FOR ACTUATOR PROTECTION -Not as spare part now- -Replaced by 220681- | 1 |
| 37 | 220681 | SHIELD FOR ACTUATOR PROTECTION | 1 |
| 38 | 160472 | NUT | 4 |
| 39 | 12637824 | SHER | 4 |
| 40 | 10903224 | SCREW | 2 |
| 41 | 186685 | BLOCK SUPPORT BRACKET | 1 |
| 42 | 124034 | BRACKET WITH SHEATH | 1 |
| 43 | 13540724 | STUD | 1 |
| 44 | 208103 | BRACKET | 1 |
| 45 | 16043124 | SCREW | 1 |
| 46 | 149707 | SPACER | 2 |
| 47 | 177576 | CABLE GROMMET | 2 |
| 48 | 208622 | SENSOR PROTECTION SHIELD | 1 |
| 49 | 160472 | NUT | 2 |
| 50 | 12637824 | SHER | 2 |
| 51 | 180745 | SHIELD SUPPORTING BRACKET | 1 |
| 52 | 13516424 | STUD | 1 |
| 53 | 177778 | NUT | 1 |
| 54 | 12638524 | SHER | 2 |
| 55 | 102741 | NUT | 1 |
| 56 | 12643724 | SHER | 1 |
| 57 | 180965 | OIL RECYCLE PIPE | 1 |
| 58 | 248095 | POTENTIOMETERS KIT | 1 |
| 59 | 192865 | SCREW | 4 |
| 60 | 222502 | POTENTIOMETERS FLANGE | 1 |
| 61 | 192866 | SCREW | 4 |
| 62 | 213472 | CLIP | 1 |
| 63 | 208842 | BRACKET | 1 |
| 64 | 10902424 | SCREW | 2 |
| 65 | 127494 | SHER | 2 |
| 66 | 12643724 | SHER | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
