Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

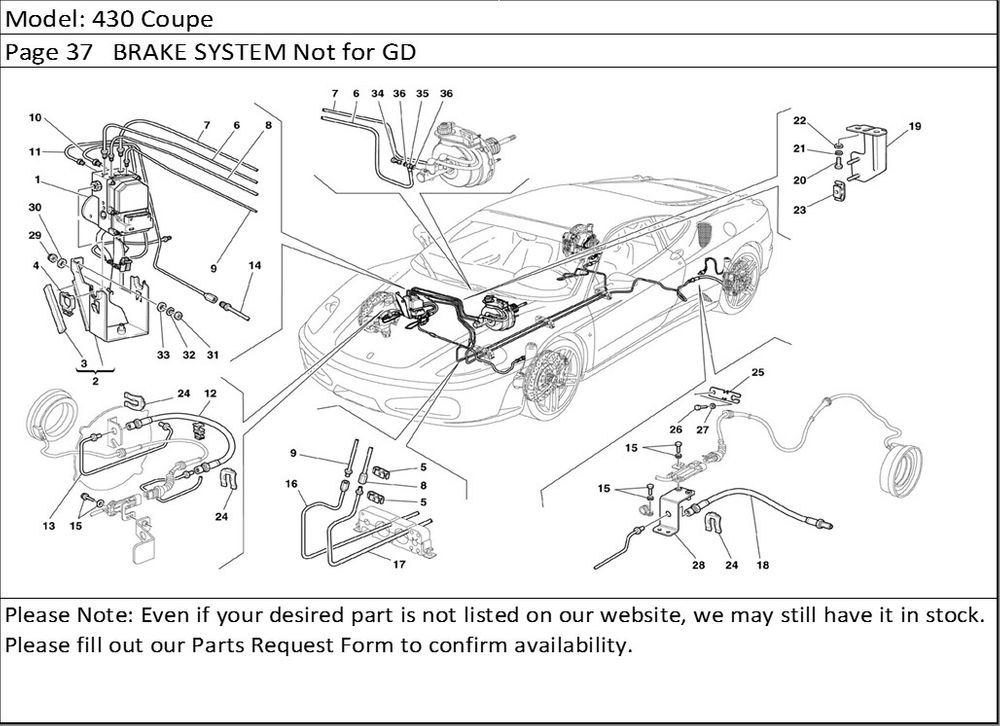

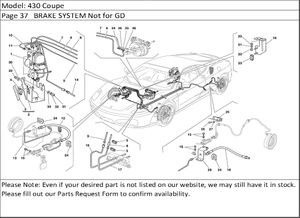

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 194608 | ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION -Valid till Ass. Nr. 61536- | 1 |
| 1 | 221252 | ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION -Valid from Ass. Nr. 61537- | 1 |
| 2 | 203603 | CONTROL STATION SUPPORTING BRACKET | 1 |
| 3 | 197149 | ANTI-VIBRATIONS | 1 |
| 4 | 193877 | FIXING CLIP | 2 |
| 5 | 169476 | CLIP | 4 |
| 6 | 194602 | BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Standard- -Cast iron version- | 1 |
| 6 | 209904 | BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Optional- -CCM version- | 1 |
| 7 | 194601 | BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Standard- -Cast iron version- | 1 |
| 7 | 209906 | BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Optional- -CCM version- | 1 |
| 8 | 194603 | PIPE FROM CONTROL STATION TO L.H. INTERMEDIATE PIPE | 1 |
| 9 | 194604 | PIPE FROM CONTROL STATION TO R.H. INTERMEDIATE PIPE | 1 |
| 10 | 194605 | PIPE FROM CONTROL STATION TO INTERMEDIATE PIPE | 1 |
| 11 | 194606 | PIPE FROM CONTROL STATION TO R.H. FRONT BRAKE PIPE | 1 |
| 12 | 116373 | FRONT HOSE | 2 |
| 13 | 173805 | PIPE TO L.H. FRONT BRAKE | 1 |
| 13 | 173805 | PIPE TO L.H. FRONT BRAKE -Not as spare part now- -Replaced by 173805- | 1 |
| 13 | 173806 | PIPE TO R.H. FRONT BRAKE | 1 |
| 13 | 173806 | PIPE TO R.H. FRONT BRAKE -Not as spare part now- -Replaced by 173806- | 1 |
| 14 | 205295 | INTERMEDIATE PIPE | 1 |
| 15 | 11625724 | SCREW WITH WASHER | 6 |
| 16 | 205093 | PIPE TO R.H. REAR HOSE | 1 |
| 17 | 205094 | PIPE TO L.H. REAR HOSE | 1 |
| 18 | 118100 | HOSE | 2 |
| 19 | 207278 | BRAKES PIPES FIXING BRACKET | 1 |
| 20 | 10902424 | SCREW | 2 |
| 21 | 127494 | SHER | 2 |
| 22 | 12644424 | SHER | 2 |
| 23 | 169476 | CLIP | 2 |
| 24 | 116374 | CLIP | 8 |
| 25 | 178938 | SUPPORT FOR CABLE -Standard- -Cast iron version- | 2 |
| 25 | 216382 | L.H. SUPPORT FOR CABLE -Optional- -CCM version- | 1 |
| 25 | 216383 | R.H. SUPPORT FOR CABLE -Optional- -CCM version- | 1 |
| 26 | 10902024 | SCREW | 2 |
| 27 | 12601274 | SHER -Valid after stock exhaustion of 12605374- | 2 |
| 27 | 12605374 | SHER -Valid till stock exhaustion- | 2 |
| 28 | 185283 | REAR SUPPORT | 2 |
| 29 | 101139 | NUT | 1 |
| 30 | 12638524 | SHER | 1 |
| 31 | 177778 | NUT -Not as spare part- -Replaced by 16100814- | 1 |
| 31 | 16100814 | NUT | 1 |
| 32 | 127496 | SHER | 1 |
| 33 | 12638524 | SHER -Not as spare part- -Replaced by 12646724- | 1 |
| 33 | 12646724 | SHER | 1 |
| 34 | 10107225 | UNION | 1 |
| 35 | 249656 | UNION | 1 |
| 36 | 10261060 | GASKET | 2 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
