Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

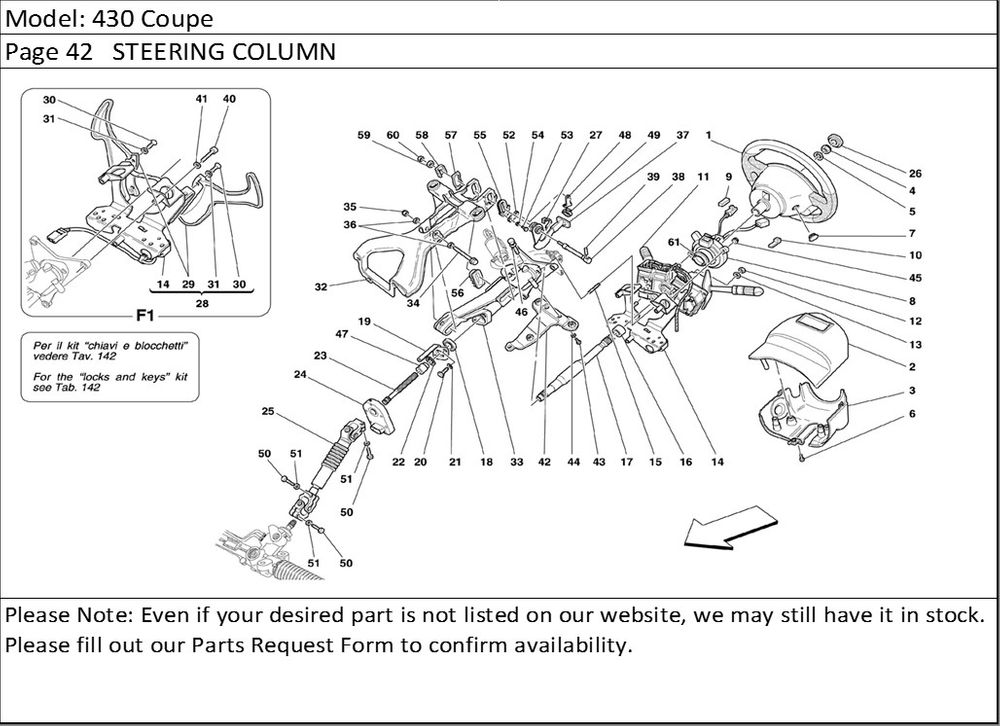

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 689389 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Standard- -Valid till stock exhaustion- -Valid till car Ass. Nr. 60177- | 1 |
| 1 | 808982 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Optional- -Steering wheel crown and plate covered with carbon- | 1 |
| 1 | 803268 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Optional- -Steering wheel crown and plate covered with carbon- -Valid after stock exhaustion of 800537..- -Not as spare part--Replaced by 808982..- | 1 |
| 1 | 800537 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Optional- -Steering wheel crown and plate covered with carbon- -Valid till stock exhaustion- | 1 |
| 1 | 693950 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Optional- -Steering wheel crown and plate covered with carbon- -Not as spare part- -Replaced by 800537..- | 1 |
| 1 | 693949 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Optional- -Carbon plate- | 1 |
| 1 | 808981 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Standard- | 1 |
| 1 | 803265 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Standard- -Valid after stock exhaustion of 800536..- -Not as spare part- -Replaced by 808981 ..- | 1 |
| 1 | 800536 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Standard- -Valid after stock exhaustion of 689389..- -Valid from car Ass. Nr. 60178- -Valid till stock exhaustion- | 1 |
| 1 | 697462 | COMPLETE AIR-BAG STEERING WHEEL -Without air bag module- -Standard- -Valid after stock exhaustion of 689389..- -Valid from car Ass. Nr. 60178- -Not as spare part- -Replaced by 800536..- | 1 |
| 2 | 68097900 | UPPER COVER -Valid for F1- | 1 |
| 2 | 68098200 | UPPER COVER-Not for F1- | 1 |
| 3 | 68097800 | ER COVER -Not for F1 - | 1 |
| 3 | 68161600 | ER COVER -Valid for F1- | 1 |
| 4 | 199222 | NUT | 1 |
| 5 | 152034 | SHER | 1 |
| 6 | 15960507 | SCREW | 5 |
| 7 | 185486 | PLUG | 2 |
| 8 | 213671 | SPIRAL CONTACT | 1 |
| 9 | 163816 | RESISTOR FOR SPIRAL CONTACT | 1 |
| 10 | 135355 | CONNECTOR | 1 |
| 11 | 177585 | UNHOOK DEVIATION ASSEMBLY | 1 |
| 12 | 15896470 | NUT | 2 |
| 13 | 12601174 | SHER | 2 |
| 14 | 204155 | BRACKET SUPPORTING SPIRAL CONTACT -Not for F1 - | 1 |
| 14 | 203317 | CONTROL BRACKET FOR GEAR BOX -Valid for F1- -Not as spare part- | 1 |
| 15 | 11001424 | STUD | 2 |
| 16 | 199094 | ROLLER BEARING | 1 |
| 17 | 197701 | COLUMN UPPER SHAFT | 1 |
| 18 | 171540 | BALLBEARING | 1 |
| 19 | 201016 | BRACKET SUPPORTING STEERING ANGLE SENSOR | 1 |
| 20 | 10902224 | SCREW | 2 |
| 21 | 11181874 | SHER | 2 |
| 22 | 11067376 | SEEGER RING | 1 |
| 23 | 183993 | COLUMN LOWER SHAFT | 1 |
| 24 | 190405 | STEERING ANGLE SENSOR | 1 |
| 25 | 171528 | STEERING CARDANIC TRASMISSION | 1 |
| 26 | 199406 | PLUG | 1 |
| 27 | 171531 | PIN RETAINING SPRING | 1 |
| 28 | 226101 | F1 GEARBOX CONTROL LEVERS ASSEMBLY -Valid for F1- -Optional- -Carbon- -Valid after stock exhaustion of 218518- | 1 |
| 28 | 226101 | F1 GEARBOX CONTROL LEVERS ASSEMBLY -Valid for F1- -Optional- -Carbon- -Valid till stock exhaustion- | 1 |
| 28 | 226099 | F1 GEARBOX CONTROL LEVERS ASSEMBLY -Valid for F1 - -Standard- -Valid after stock exhaustion of 201682- | 1 |
| 28 | 201682 | F1 GEARBOX CONTROL LEVERS ASSEMBLY -Valid for F1 - -Standard- -Valid till stock exhaustion- | 1 |
| 29 | 201682 | COUPLE LEVERS -Valid for F1 - -Standard- | 1 |
| 29 | 226101 | COUPLE LEVERS -Valid for F1 - -Optional- -Carbon- | 1 |
| 30 | 13308977 | SCREW -Valid for F1- -Valid for levers assembly 201682 and 218518 ref. 28- | 4 |
| 30 | 226092 | SCREW -Valid for F1- -Valid for levers assembly 226099 and 226101 ref. 28- | 4 |
| 31 | 12606673 | SHER -Valid for F1- -Valid for levers assembly 201682 and 218518 ref. 28- | 4 |
| 32 | 197702 | STEERING COLUMN SUPPORT BRACKET -Not for GD- | 1 |
| 32 | 209191 | STEERING COLUMN SUPPORT BRACKET -Valid for GD- | 1 |
| 33 | 197700 | COLUMN SUPPORT | 1 |
| 34 | 180632 | SCREW | 1 |
| 35 | 104030 | NUT | 1 |
| 36 | 12625224 | SHER | 2 |
| 37 | 659933 | COVERED LEVER | 1 |
| 38 | 171503 | PIN FOR LEVER | 1 |
| 39 | 10336630 | PIN | 1 |
| 40 | 13274611 | SCREW-Valid for F1- | 3 |
| 41 | 12601174 | SHER -Valid for F1- | 3 |
| 42 | 65164200 | BRACKET | 1 |
| 43 | 13274177 | SCREW | 3 |
| 44 | 12637878 | SHER | 3 |
| 45 | 61002200 | NUT | 2 |
| 46 | 172563 | ANTITHEFT FIXING SCREW | 1 |
| 47 | 200970 | RING NUT | 1 |
| 48 | 177977 | SMALL PLATE | 1 |
| 49 | 178430 | FIXING CLIP | 1 |
| 50 | 192229 | HEXAGONAL SCREW | 3 |
| 51 | 192230 | SHER | 3 |
| 52 | 171523 | PLATE | 1 |
| 53 | 10977724 | SCREW | 2 |
| 54 | 11181574 | SHER | 2 |
| 55 | 171544 | LEVER SIDE GUIDE SHOE | 1 |
| 56 | 171501 | FIXED TENSION SLIDE | 1 |
| 57 | 171502 | SPRING FOR GUIDE SHOE | 1 |
| 58 | 171529 | MOBILE GUIDE SHOE | 1 |
| 59 | 171542 | NUT | 1 |
| 60 | 147985 | NUT | 1 |
| 61 | 199784 | BUSHING | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
