Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

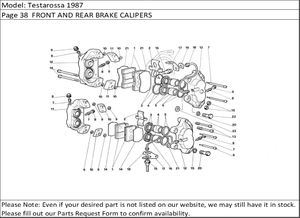

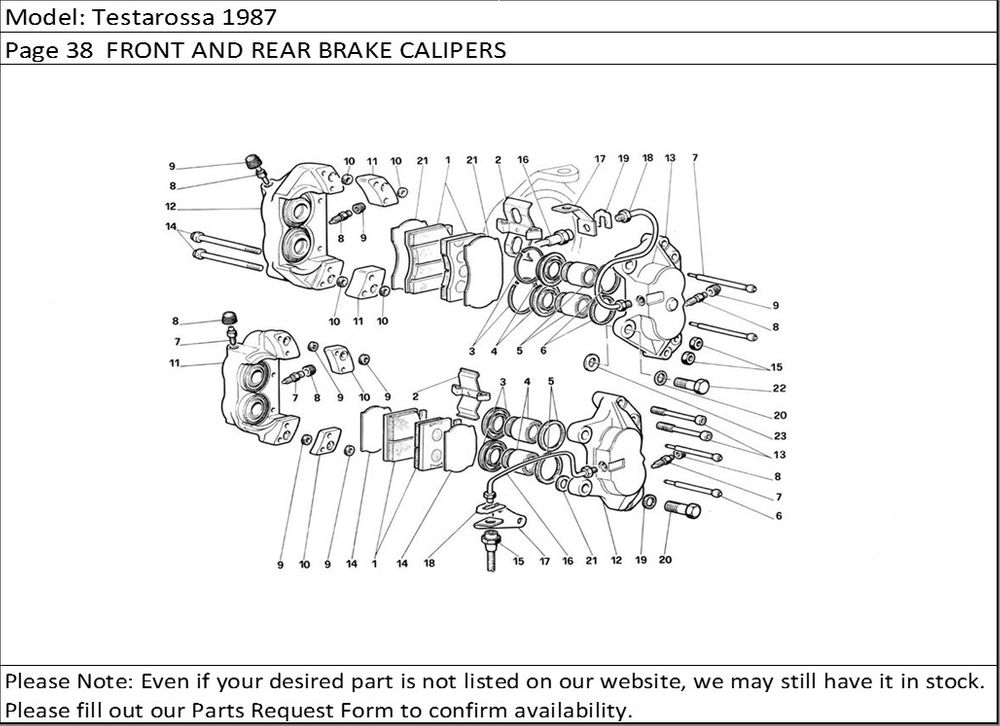

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 125666 | Brake pad | 4 |
| 1 | 125665 | Brake pad | 4 |
| 2 | 95691531 | Front caliper overhaul kit (one) | 2 |
| 2 | ATE | Pad pressure spring | 2 |
| 2 | 95691532 | Rear caliper overhaul kitOne | 1 |
| 2 | - | Pad pressure spring | 2 |
| 3 | - | Brake cylinder protection ring With kit P.N. 95691532 | 8 |
| 3 | - | Stop ringWith kit P.N. 95691531 | 8 |
| 3 | ATE | Stop ringWith kit P.N. 95691531 | 8 |
| 3 | ATE | Brake cylinder protection ring With kit P.N. 95691532 | 8 |
| 4 | - | Brake cylinder | 8 |
| 4 | ATE | Brake cylinder protection ring With kit no. 95691531 | 8 |
| 4 | ATE | Brake cylinder | 8 |
| 5 | ATE | Seal ring on cylinder With kit P.N. 95691532 | 8 |
| 5 | ATE | Brake cylinder | 8 |
| 5 | - | Brake cylinder | 8 |
| 6 | - | Seal ring on cylinder With kit no. 95691531 | 8 |
| 6 | ATE | Seal ring on cylinder With kit no. 95691531 | 8 |
| 6 | - | Pin for pads With kit P.N. 95691533 | 4 |
| 6 | ATE | Pin for pads With kit P.N. 95691533 | 4 |
| 7 | - | Bleeder | 6 |
| 7 | ATE | Pin for pads With kit no. 95691531 | 4 |
| 7 | ATE | Bleeder | 6 |
| 8 | ATE | Bleeder cap | 6 |
| 8 | - | Bleeder | 6 |
| 8 | ATE | Bleeder | 6 |
| 9 | ATE | Bleeder cap | 6 |
| 9 | ATE | Seal ring on spacer | 8 |
| 9 | - | Bleeder cap | 6 |
| 10 | - | Seal ring on spacer | 8 |
| 10 | ATE | Seal ring on spacer | 8 |
| 10 | ATE | Spacer | 4 |
| 11 | - | Brake cylinder outer body | 2 |
| 11 | ATE | Brake cylinder outer body | 2 |
| 11 | ATE | Spacer | 4 |
| 12 | ATE | Brake cylinder inner body | 2 |
| 12 | - | Brake cylinder inner body | 2 |
| 12 | ATE | Brake cylinder outer body | 8 |
| 13 | - | Brake cylinder body securing bolt | 4 |
| 13 | ATE | Brake cylinder inner body | 2 |
| 13 | ATE | Brake cylinder body securing bolt | 4 |
| 14 | - | Brake cylinder bosy securing bolt | 4 |
| 14 | 105054 | Plate | 4 |
| 14 | ATE | Brake cylinder bosy securing bolt | 4 |
| 15 | - | Nut | 4 |
| 15 | 116373 | Rear calipers connecting hose | 4 |
| 15 | ATE | Nut | 4 |
| 16 | 116373 | Front calipers connecting hose | 4 |
| 16 | 101395 | Pipe from caliper to hose | 4 |
| 17 | 125706 | Bracket on LH hub holder | 1 |
| 17 | 125705 | Bracket on RH hub holder | 1 |
| 17 | 116396 | Bracket fixing hoses to stub axle | 2 |
| 18 | 116374 | Hose clamp | 4 |
| 18 | 106671 | Pipe from caliper to hose | 4 |
| 19 | 116374 | Clamp | 4 |
| 19 | 101255 | Washer | 4 |
| 20 | 101255 | Washer | 4 |
| 20 | 101264 | Caliper securing bolt | 4 |
| 21 | 108919 | Shim - 0.3 mm, thick (if required) | 4 |
| 21 | 108922 | Shim - 0.7 mm, thick (if required) | 4 |
| 21 | 128869 | Plate | 4 |
| 21 | 108920 | Shim - 0.5 mm, thick (if required) | 4 |
| 21 | 108923 | Shim - 0.8 mm, thick (if required) | 4 |
| 21 | 108918 | Shim - 0.2 mm, thick (if required) | 4 |
| 21 | 108921 | Shim - 0.6 mm, thick (if required) | 4 |
| 21 | 108924 | Shim - 1 mm, thick (if required) | 4 |
| 22 | 125763 | R.H. brake caliper | 1 |
| 22 | 101248 | Caliper securing bolt | 4 |
| 22 | 125764 | L.H. brake caliper | 1 |
| 23 | 108922 | Shim - P.7 mm. thick (if required) | 4 |
| 23 | 108923 | Shim - 0.8 mm. thick (if required) | 4 |
| 23 | 108919 | Shim - 0.3 mm. thick (if required) | 4 |
| 23 | 125765 | R.H brake caliper | 1 |
| 23 | 108920 | Shim ? 0.5 mm. thick (if required) | 4 |
| 23 | 108924 | Shim - 1 mm. thick (if required) | 2 |
| 23 | 108921 | Shim - 0.6 mm. thick (if required) | 4 |
| 23 | 108918 | Shim - 0.2 mm. thick (if required) | 4 |
| 23 | 125766 | L.H. brake caliper | 1 |
| 23 | 108920 | Shim ? 0.5 mm. thick (if required) | 4 |
