Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

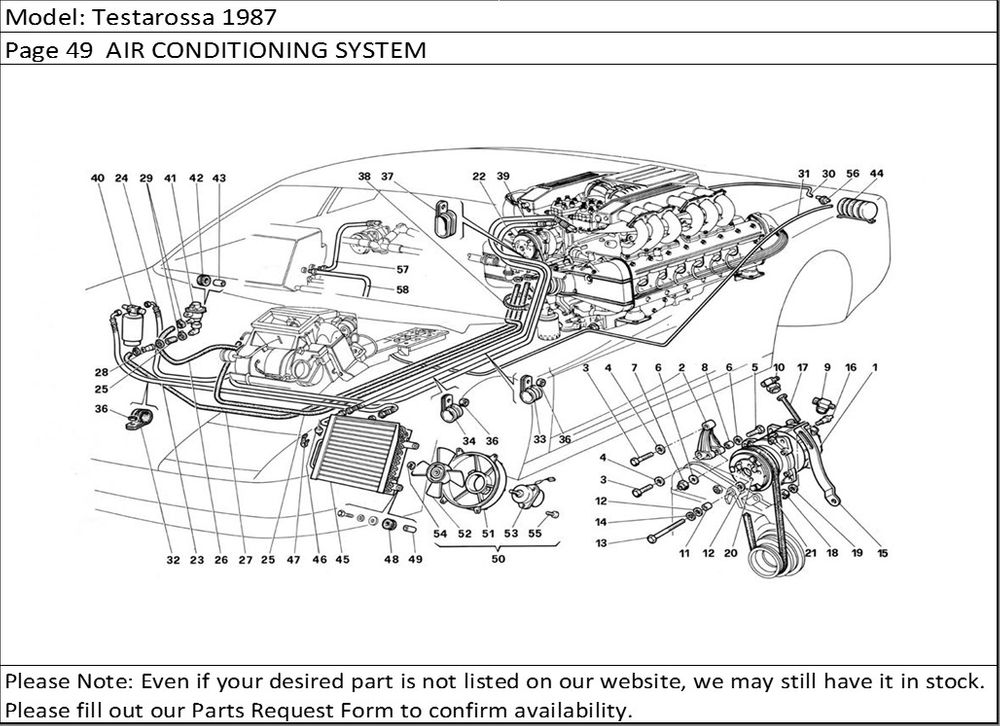

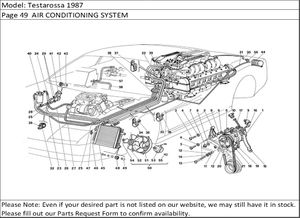

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 123205 | Compressor | 1 |
| 2 | 122963 | Compressor support | 1 |
| 3 | 121537 | Screw | 2 |
| 4 | 12601471 | Washer | 2 |
| 5 | 11288021 | Screw | 1 |
| 6 | 14496601 | Washer | 2 |
| 7 | 12574511 | Nut | 1 |
| 8 | 123180 | Spacer | 1 |
| 9 | 124233 | Intake unionUntil engine no. ......…, and for US | 1 |
| 9 | 127786 | Intake unionStarting from engine no. ......…, and not for US | 1 |
| 10 | 126928 | Outlet union | 1 |
| 11 | 121100 | Bushing on crankcase cover | 1 |
| 12 | 103025 | Washer | 2 |
| 13 | 15541721 | Screw | 1 |
| 14 | 106854 | Washer | 1 |
| 15 | 123181 | Tension adjusting bracket | 1 |
| 16 | 123188 | Pin for adjusting bracket | 1 |
| 17 | 125668 | Tension adjusting screw | 1 |
| 18 | 16104111 | Nut | 1 |
| 19 | 14496501 | Washer | 1 |
| 20 | 123813 | Electromagnetic joint | 1 |
| 21 | 122973 | Compressor belt | 1 |
| 22 | 124022 | Hose from compressor to condenser | 1 |
| 23 | 124023 | Hose from condenser to filter LHD | 1 |
| 23 | 125441 | Hose from condenser to filterRHD | 1 |
| 24 | 124024 | Hose from filter to cooler LHD | 1 |
| 24 | 130918 | Hose from filter to cooler RHD | 1 |
| 25 | 124027 | Hose from engine to heater | 1 |
| 26 | 125445 | Hose from heater to valve RHD | 1 |
| 26 | 61615000 | Hose from heater to valve LHD | 1 |
| 27 | 124029 | Hose from valve to engine | 1 |
| 28 | 124030 | Metal undersize ring | 1 |
| 29 | 12179990 | Clamp | 5 |
| 30 | 124031 | Hose from engine to vacuum reservoirNot for US | 1 |
| 30 | 127455 | Hose from engine to vacuum reservoirFor US | 1 |
| 31 | 124032 | Hose from reservoir to | 1 |
| 32 | 10441490 | Hose fastening bracket | 2 |
| 33 | 10441890 | Hose fastening bracket | 2 |
| 34 | 119463 | Hose fastening bracket | 1 |
| 35 | 125003 | Sleeve | 1 |
| 36 | 12574211 | Nut | 4 |
| 37 | 61712500 | Hose fastening bracket | 1 |
| 38 | 125527 | Hose supporting clamp | 2 |
| 39 | 124670 | Hose, evaporator - compressorFor intake union no 124333 | 1 |
| 39 | 127787 | Hose from evaporator to compressorFor intake union No. 127786 - Not for US | 1 |
| 40 | 114730 | Dryer filter Until exhausted | 1 |
| 40 | 129102 | Pressostat For filter 129101 | 1 |
| 40 | 129101 | Dryer filter After exhaustion of P.N. 114730 | 1 |
| 41 | 61079000 | Electromagnetic valve | 1 |
| 42 | 103549 | Vibration-damping bushing | 2 |
| 43 | 103550 | Spacer | 2 |
| 44 | 61642700 | Vacuum reservoir complete with valve | 1 |
| 45 | 61400300 | Condenser | 1 |
| 46 | 61047900 | Bimetallic thermocontact | 1 |
| 47 | 60815000 | Clip | 1 |
| 48 | 103549 | Vibration-damping bushing | 4 |
| 49 | 103550 | Spacer | 4 |
| 50 | 131647 | Fan assembly For B1 - U7 S7 - C7 | 1 |
| 50 | 124040 | Fan assembly For A1 - U6 - S6 - C6 | 1 |
| 51 | 60870300 | Air conveyor | 1 |
| 52 | 122953 | Fan | 1 |
| 53 | 117546 | Motor | 1 |
| 54 | 11087876 | Stop ring | 1 |
| 55 | 123298 | Screw | 3 |
| 56 | 61653800 | Single-action valve | 1 |
| 57 | 125851 | Hose exchanger-compressor For US | 1 |
| 58 | 125852 | Hose evaporator-exchanger For US | 1 |
